asRockVision 3D Series (Sandy Bridge) Spec














Specification

CPU- Intel® Core™ i5 2520M Mobile Sandy Bridge Processor
- Supports 2nd Generation Intel® Core™ i7 / i5 / i3 Dual-Core Mobile Sandy Bridge Processor Family
OS- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant

*Due to VGA driver limitation, 3D function only supports Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit.
Chipset- Mobile Intel® HM65 Express chipset
Memory- 8GB DDR3-1333MHz (2x4GB)
- Supports DDR3 1600*/1333/1066 MHz, 2 x SO-DIMM slots, Max. up to 16GB**

*DDR3 1600 is only supported with Intel® Core i5 and above CPU.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
VGA- NVIDIA® GeForce GT540M Graphics (with 1GB GDDR3 VRAM), Supports Blu-ray 3D playback, NVIDIA® 3D Vision, 3DTV Play Capable
- Intel® HD Graphics 3000, Supports Lucid Virtu™ Switchable Graphics

*Lucid Virtu only supports Windows® 7 / Windows® 7 64bit.
HDD- 750GB, 7200rpm, 2.5" SATA HDD
ODD- BD Combo

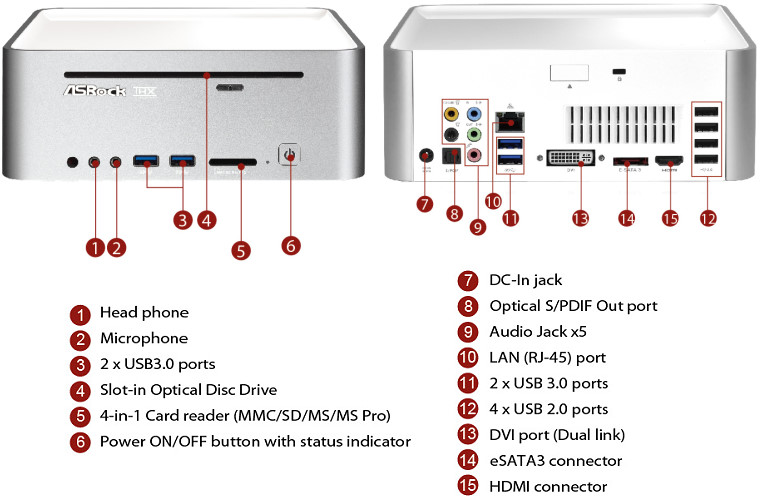

Front I/O- 2 x USB 3.0, 1 x MIC, 1 x Headphone, 4-in-1 Card reader (MMC/SD/MS/MS PRO)
Rear I/O- 1 x HDMI 1.4a, 1 x DVI-I (Dual-Link), 4 x USB 2.0, 1 x S/PDIF, 1 x eSATA3, 2 x USB 3.0

*For eSATA function, Hot Plug function is supported in AHCI mode only. IDE mode does not support Hot Plug function.
LAN- Gigabit LAN
Sound- 7.1 CH HD Audio with THX TruStudio™
WiFi- 2T2R 802.11b/g/n

*300Mbps, 2T/2R
Remote Controller- MCE Remote Controller
Power Unit- 90W/19V Adapter
Dimension- 200mm(W) x 70mm(H) x 200mm(L)
Volume (liters)- 2.8L
